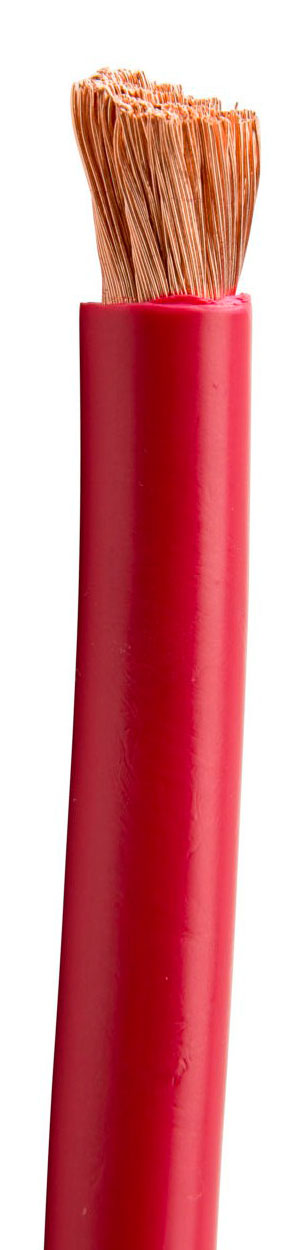

"BLASA" Wire & Cables 1100 V Grade annealed bare copper conductor, PVC Insulated and unsheathed single core flexible cables conform to IS: 694
| SIZE | No/Dia of Strand | COND. Bunched Dia (Approx) | Max DC Resistance at 20°C | INSU/THK | Cable Dia Approx. | #Current carrting capacity |
|---|---|---|---|---|---|---|
| sq.mm | mm | mm | Ohm/mm | mm | mm | Amps |
| 0.50 | 16/0.200 | 1.0 | 39.0 | 0.6 | 2.1 | 4.0 |
| 0.75 | 24/0.200 | 1.2 | 26.0 | 0.6 | 2.4 | 7.0 |
| 1.0 | 14/0.300 | 1.3 | 18.1 | 0.7 | 2.6 | 12.0 |
| 1.0 | 32/0.200 | 1.3 | 19.50 | 0.7 | 2.6 | 12.0 |
| 1.5 | 22/0.300 | 1.6 | 12.10 | 0.7 | 3.0 | 16.0 |
| 1.5 | 30/0.250 | 1.6 | 13.30 | 0.7 | 3.0 | 16.0 |
| 2.5 | 36/0.300 | 2.1 | 7.4 | 0.8 | 3.6 | 19.0 |
| 2.5 | 50/0.250 | 2.1 | 7.4 | 0.8 | 3.6 | 19.0 |
| 4.0 | 56/0.300 | 2.6 | 5.0 | 0.8 | 4.2 | 26.0 |
| 6.0 | 84/0.300 | 3.3 | 3.3 | 0.8 | 5.0 | 31.0 |
| 10.0 | 80/0.400 | 4.6 | 1.9 | 1.0 | 6.6 | 42.0 |
| 16.0 | 126/0.400 | 5.9 | 1.2 | 1.0 | 8.1 | 57.0 |
| 25.0 | 196/0.400 | 7.4 | 0.780 | 1.2 | 9.8 | 71.0 |
| 35.0 | 276/0.400 | 8.7 | 0.5540 | 1.2 | 11.2 | 91.0 |
| 50.0 | 396/0.400 | 10.6 | 0.3860 | 1.4 | 13.4 | 120.0 |
| 70.0 | 360/0.500 | 12.3 | 0.2720 | 1.4 | 15.4 | 161.0 |
| 95.0 | 475/0.500 | 14.6 | 0.2060 | 1.6 | 18.2 | 210.0 |
| 120.0 | 600/0.500 | 16.5 | 0.1610 | 1.6 | 20.0 | 235.0 |
| 150.0 | 750/0.500 | 18.3 | 0.1290 | 1.8 | 22.3 | 295.0 |
| 185.0 | 925/0.500 | 20.0 | 0.1060 | 2.0 | 24.6 | 330.0 |
| 240.0 | 1210/0.500 | 23.0 | 0.0801 | 2.2 | 27.6 | 400.0 |
| 300.0 | 1552/0.500 | 26.4 | 0.0641 | 2.4 | 32.0 | 475.0 |
| 400.0 | 2035/0.500 | 30.1 | 0.0486 | 2.6 | 35.7 | 550.0 |
"BLASA" FR-LSH
was developed and introduced for commercial building and specially for those building where exits and ventilation is restricted (Like - Cinema Halls), being in case of these types of building most of the people become victims due to suffocation and non-visibility which occurs due to burning of PVC because PVC emits lots of black smoke and toxic gases while burning. Therefore FRLSH insulation was developed in a way that burning of PVC having FRLSH feature should emit lesser smoke and toxic gases (halogen).
Safety
Blasa FR-LSH flexible cables are made from specailly formulated insulation that restricts toxic gases and smoke providing protection for human safety.
High Oxygen Index
The oxygen index is 30% for FRLSH insulation .i.e. the Blasa FRLSH insulation can catch the flame only if oxygen level in atmosphere or air is more than 30% whereas it known fact that in atmosphere oxygen level is 21% only. Higher the index value, greater the non-combustibility.
Self Extinguishing Property
BLASA FR-LSH flexible cable have self -extinguishing property which do not allow the fire to spread.
"BLASA" HFFR
"A break through from R & D efforts of Blasa engineers at the Blasa cables plant at Kundli(Haryana), the special compound is practically halogen-free content and has a very high oxygen index. Blasa HFFR's insulation was developed in keeping in view to have better safety in case fire and with improved conductivity in flexible cable range, being the basic raw - material used to develop this insulation is a special Polymer which requires a temperature up to 280°C. To melt/burn, which is much higher than a PVC which melts/burns at 85°C. The better burning temperature defines the higher heat bearing capacity and subsequently it proves the cable will have better conductivity (When current flow from a conductor it generates heat and if insulation has better heat bearing capacity it will improves the conductivity also). Secondly this insulation have property that while burning it emits only 2% smoke that too transparent and Non-Toxic."
Non-Toxic
An oxygen mask in case of fire - Research shows that maximum casualities in Fire happen due to chocking caused by formation of hazardous gases. PVC flame Retardant Low Smoke and Halogen cables release lesser toxic gases compared to ordinary PVC cables. Smoke generation in case of FRLSH cables is <60% and released of halogen content is <20%. Our HFFR (Halogen-free Flame Retardant) cables are practically halogen-free and are 10 times superior to FR-LSH cables as in case of fire release of Hazardous gases is <0.5%. This ensure that people trapped in fire can breathe easy facilitating better chances of their rescue. Every day thousands of tonnes of Hazardous Halogen gases are released in the environment resulting in depletion of the earth's ozone layer which protects us from cancer causing UV radiations of the Sun - a phenomenon popularly known as Greenhouse Effect. Blasa HFFR insulated industrial cables are practically halogen-free and, therefore, ennvironment friendly, protecting not only you and your family, but also the future generations against the Green House Effect.
