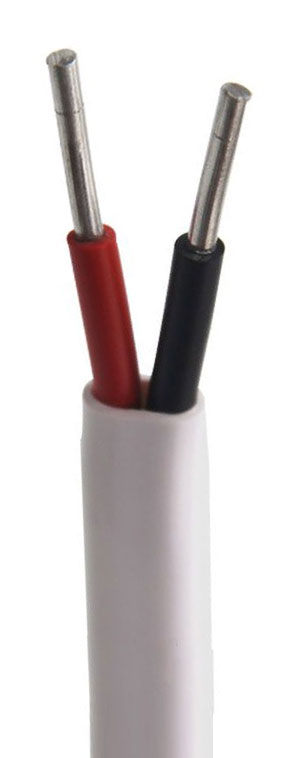

These cables are PVC insulated & sheathed 2-core flat cables with aluminium conductor that provide electrical connection from the main line to house, building or complex. We manufacture high quality aluminium service wires that are ISI marked, conforming to IS: 694 and suitable for operation up to & including 1100 volts. We use h2, h4 grade plain aluminium conductor that possesses high tensile strength. Highly robust, tough PVC is used for sheathing that is resistant to adverse weather conditions.
| Working Voltage : | 1100 V | Sheath : | Cores are covered with tough outer PVC sheath. |
|---|---|---|---|
| Temp. Range : | -10° C to + 70° C | Insulation : | Cores are insulated with a special grade PVC compound confirning to IS 5831:1984 |
| Aluminium Grade : | H2/H4 Grade Confirming to IS: 8130-1984 | ||
| Specification : | ISO: 694 | Packing : | 90 MTR, 270 MTR, 500 MTR. Coils, Higher Size on drum & as per customer requirement. |
| International Certification : | ISO 9001-2015 |
| Nominal area of conductor | Thickness of Insulation (Nom.) | Sheath Thickness (Nom.) | Approx. Overall Dia. | Resistance (max) per km @20°C | |
|---|---|---|---|---|---|
| Width | Height | ||||
| Sq.mm | mm | mm | mm | mm | Ohms. |
| 2.5 | 0.7 | 1.0 | 9.7 | 6.2 | 12.1 |
| 4.0 | 0.8 | 1.0 | 11.3 | 7.0 | 7.4 |
| 6.0 | 0.8 | 1.1 | 12.8 | 7.8 | 4.6 |
| 10.0 | 1.0 | 1.2 | 15.7 | 9.3 | 3.1 |
| 16.0 | 1.0 | 1.3 | 18.0 | 10.7 | 1.9 |
