Blasa specialise in 3 core flat cables with best quality Electrolytic Grade Copper which is drawn annealed on-line and bunched on automatic machines (NIEHOFF-GERMANY) to ensure flexibility and uniform resistance. The conductors are insulated with special grade of PVC on sophisticated co-extrusion lines. Outer sheath consist of high abrasion resistance PVC compound impervious to grease, oil, water etc.
Blasa specialise in 3 core flat cables manufactured for critical requirments protections against indefinite immersion in water under specified condition protection against rainwear and against of small solid for gain bodies.

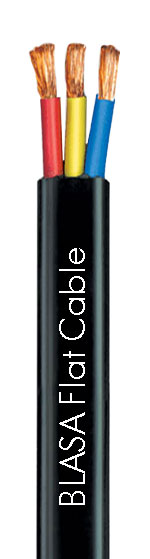

Blasa specialise - 3 core Flat Cables (as per IS 694 - ISI Marked)
| Conductor | Insulation | Sheath | Conductor Resistance at 20°C (Max) Ohm/km | Current carrying capacity at 40°C | ||
|---|---|---|---|---|---|---|
| Area (Nom) Sq.mm. | No Dia. of strand mm | Thickness (Nom.) mm | Overall Dimensions | |||
| Thickness (Nom.) mm | Size (Approx.) (W x T) mm | |||||
| 1.0 | 14/0.3 | 0.7 | 1.0 | 10.45 x 4.90 | 18.10 | 12.0 |
| 1.5 | 22/0.3 | 0.8 | 1.1 | 11.60 x 5.50 | 12.10 | 16.0 |
| 2.5 | 36/0.3 | 0.9 | 1.2 | 13.90 x 6.40 | 7.41 | 22.0 |
| 4.0 | 56/0.3 | 1.0 | 1.3 | 16.10 x 7.10 | 4.95 | 29.0 |
| 6.0 | 84/0.3 | 1.1 | 1.4 | 18.60 x 8.00 | 3.30 | 37.0 |
| 10.0 | 80/0.4 | 1.3 | 1.6 | 23.40 x 10.00 | 1.91 | 51.0 |
| 16.0 | 126/0.4 | 1.4 | 1.8 | 27.00 x 11.40 | 1.21 | 68.0 |
| 25.0 | 196/0.4 | 2.0 | 2.2 | 35.40 x 15.00 | 0.78 | 86.0 |
| 35.0 | 276/0.4 | 2.1 | 2.2 | 39.30 x 16.30 | 0.554 | 110.0 |
| 50.0 | 396/0.4 | 2.2 | 2.4 | 45.70 x 18.50 | 0.386 | 145.0 |
- Specifications as per IS : 694 ( Indian Standards )
- Available in Various Sizes.
- Availables in Wide Temperature Range: - 15°C to 70°C.
- Tough and Flexible Cables Provide Safety.
- Excellent Moisture and Water Resistance.
- High Abrasion Resistant Special Grade PVC.
- Best Quality of Electroytic Grade Copper Saves Power.
- Fits Perfect Required Grommet.
- As Per Indian Standard Dimensions.
- Perfect Sheathing for Under Water Application.
